Textile Machinery

Our actual full price-lists for all assortment are available by your request sent from the page Contact Us or to our email lankerindustry@gmail.com

Our company provides a wide range of textile machinery and accessories across the textile value chain along with a comprehensive range of utilities. Our expertise covers spinning, weaving, knitting, dry and wet finishing, printing, garmenting, home textiles, synthetic fibers and filaments, carpets, technical textiles and non-wovens. Now we offer a complete range of products to make technical textiles – for example, warp knitting machines, stitch bonding machines, needle lines, thermo bonding lines, spun lace lines, coating and finishing lines, etc. Besides the complete spectrum of services from pre-sales to post-sales, we become a consulting resource for our customers, in view of our deeply embedded knowledge in textile processes.

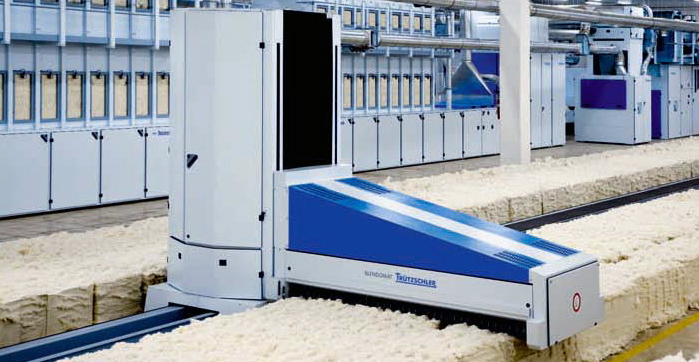

Blendomat - BO-A

The most flexible automatic bale plucker for uniform opening and feeding to other blowroom machines.

Technical Details:

Power consumption: 12.6 kW

Production: Upto 1600 kg/ hr

Length of machine: Min - 23.13 m; Max - 50.27 m

Key Features:

Upto three bale groups at a time

Feeding in upto three lines

Upto 180 bales

Raw Material:

Cotton, viscose, rayon, man-made fibres and their blends

Key Benefits:

Reduction in labour cost

Gentle and uniform opening

Small tuft size

Uncompromising safety

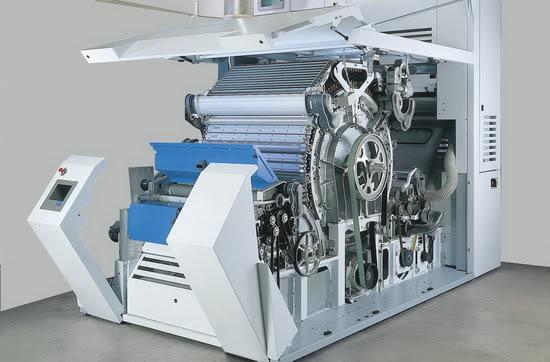

Card - TC 5-1/ TC 5-3

High production card designed to deliver superior performance with a comprehensive carding concept – available in two variants TC 5-1 and TC 5-3.

Technical Details:

Power consumption: 14.63 kW

Production: Upto 120 kg/ hr

Key Features:

Precision knife setting system PMS

Multi web clean

Direct feed

Touch screen

Raw Material:

Cotton and man-made fibres

Key Benefits:

Long carding area resulting in superior sliver quality

Less maintenance

Flexible adaptation to any material

Increase in production

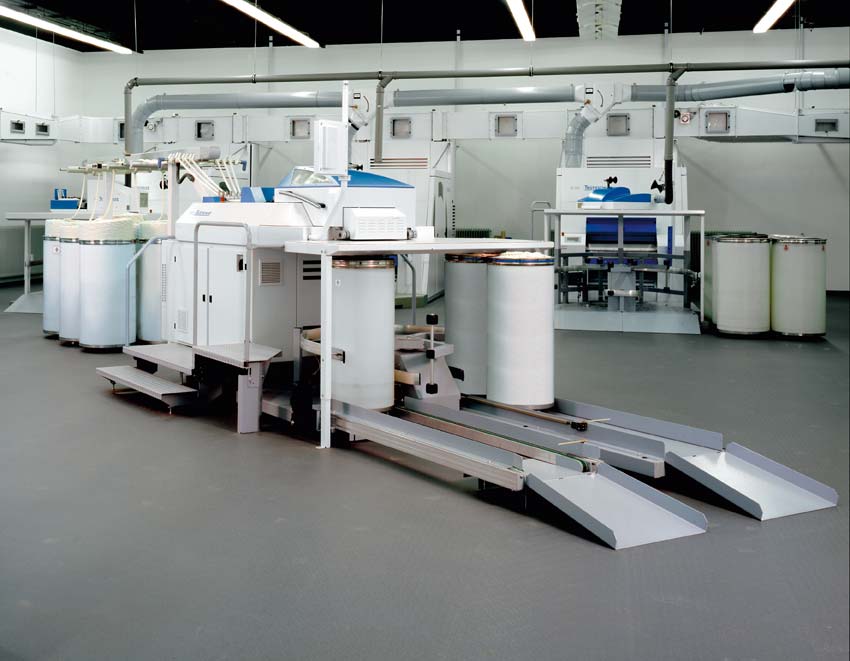

Draw frame TD - 7

Technical Details:

4-over-3 drafting system geometry

Pneumatically loaded top rolls

Pneumatic web threading

Key Features:

Pressure bar in main draft area

Perfect continuous suction with low, energysaving

Key Benefits:

Less maintenance

Digitally controlled

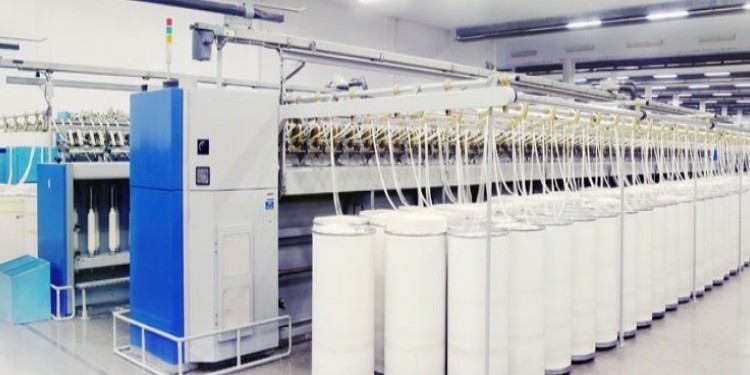

Zinserspeed 51M

The roving frame with state-of-the-art auto doffing for high productivity and unmatched roving quality.

Technical Details:

Flyer speed - 1500 rpm

Gauge - 220 mm and 260mm

Flyer size - 16' x 6 for 220 mm and 260 mm gauge

Flyer size - 16' x 7" for 260 mm gauge

Number of spindles up to  - 192 for 260 mm gauge

Number of spindles up to - 208 for 220 mm guge

Application Range:

Staple fibers up to 63 mm

Count range ne 0.3 to ne 3.0

Draft range 3.0-15.8

Key Features:

Requires less floor space

In built power failure bridging device

excellent ergonomic profile

frequency invertor controlled suction motor

Key Benefits:

Superb roving quality

wide application range from fine to coarse counts

Reduction of power consumption

short set-up and servicing times

Bobbin Transport System

Technical Details:

Fully flexible system with limitless options

Bobbins move in loops with designated S/F & R/Fs

Full batch creeling of R/F possible with this system

Heavy duty bearing assembly & track changer switches

Key Features:

Most user-friendly motorised systems with extra large storage

Systems with very low maintenance cost

Heavy duty geared motor with fire protection

Integrations with bobbin stripper possible on request

Elimination of manual bobbin handling

Modular design to suit all requirements

Heavy duty bearing assembly & track changer switches

Storage parking with overhead traveling cleaners

Can be integrated with latest S/Fs with auto doffers at extra cost

Key Benefits:

Saves considerable manpower and time

Space saving

Possible to integrate new as well as old installations

Full batch creeling of ringframe possible

Integration with bobbin stripper possible

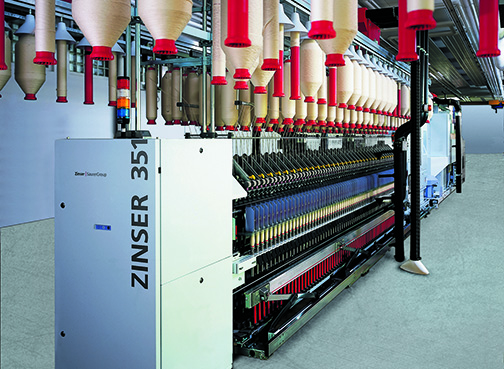

Zinser - 351

The best of ring spinning technology for cotton spinning.

Technical Details:

Spindle gauge: 70/ 75/ 82.5 mm

Tube length: 200 - 260 mm

Ring diameter: 38 - 57 mm

Max. spindle speed: 25000 rpm

Raw material: Cotton, viscose, man - made fibres and their blends

Application: 60 mm

Key Features:

Servo draft - no change gears for changing draft and twist

Synchro drive - multi-motor single tangential belt drive

Auto-doffing CoWeMat 395 V with linked system

Most reliable and flexible compact yarn attachment

Key Benefits:

Less stoppage time

Efficient, user friendly, easy to maintain and flexible

Reduces noise level, twist variation in yarn and power consumption

Reduces doffing time and material handling while increasing efficiency

Suitable for all counts

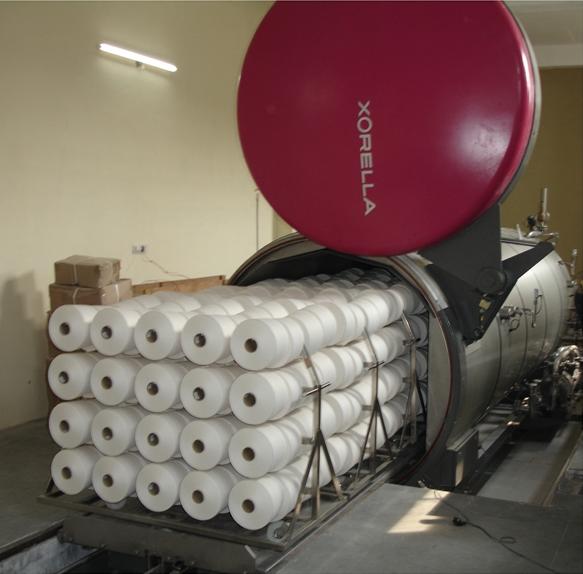

Vaccum conditioning and heat setting machine XO Smart

Application Range:

Cotton blends in short staple spinning. Application in filament and glass fibres Used for fabric conditions and print setting acrylic bulking and pre shrinking

Technical Details:

Standard machines suitable for all low temperature treatment applications up to 95°C, available in three sizes

30% less connected load

Virtually maintenance free

100% process reproducibility

Plug & Steam designed

Key Features:

Unique XO Steaming system which uses 100% saturated steam and renowned XO-Intermediate

Vaccum procedureVessel made of stainless steel

Shortest delivery time

Key Benefits:

Lowest energy consumption and highest degree of Penetration with best relaxing and conditioning results

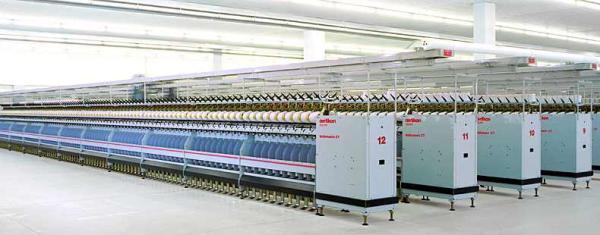

Compact Twister - VTS - 07

High performance twisting machine with a multitude of functional options for all spun yarns.

Technical Details:

Spindle gauge: 222.5/ 247.5/ 296 mm

Winding traverse: 152 - 254 mm

Max. no. of spidles: 256

Max. feed package diameter: 175 mm

 Key Features:

Narrow width machine

Universal spindle with less height

Volcojet (pneumatic threading)

Pneumatic cradle lifting

Yarn blocking system

Raw Material:

Cotton, polyester, viscose and their blends

Key Benefits:

Space saving

Low yarn tension, less power consumption and high quality of twisted yarn

Easy to operate and maintain, saves time, keeps yarn path free from fluff and dust accumulation and higher productivity

In case of end breaks, prevents rubbing of package against drum

Prevents end breaks during power failure
